Time and cost savings during large volume drilling due to digitally controlled drill feed that provides uniform work progress in all materials, combined with low tool wear.
Predictable work times on contract and serial work due to repeatable and consistent drilling times.
Excellent job safety due to an extensive safety package with torque slip clutch, visual magnet holding power gauge, and Viseo Touch Pad controls.
High torque, FEIN high-performance motor.
MT 3 mount.
QuickIN MAX fast-change system.
QuickIN fast-change system.
Extra long stroke.
Reversible.
Speed-controlled tacho electronics.
Powerful magnet.
Magnet monitor system.
Fine drill spindle adjustment.
Automatic coolant supply.
"Memory function" speed storage.
Electronic overload protection.

Interested in this item or want more information?
M-F 7:00AM - 5:00PM
Phone:
Email:

Can't find what you want? Give us a call and we can help you find it.

Details

Core bit max. dia.: 3-1/8 in

HSS core bit max. dia.: 2-9/16 in

Core drill, max. drilling depth: 2 in

Twist drill max. dia.: 1-1/4 in

Tapping: 1-1/8 in

Max. countersinking dia.: 2 in

Reaming max. dia.: 1-3/16 in

Power consumption: 2,000 Watts

Power output: 900 Watts

1st gear: 110-180 rpm

2nd gear: 160-260 rpm

3rd gear: 350-580 rpm

Core bit holder: QuickIN/QuickIN MAX

Chuck: MT 3

Stroke: 5-11/16 in

Total stroke range: 11-3/16 in

Drill stand adjustment range: ± 5/32 in

Drill stand angular adjustment: ± 11°

Magnetic holding force: 4,050 lbs

Magnetic base sizes: 10-11/16 × 3-9/16 in

Cable with plug: 13 ft

Weight according to EPTA: 58.2 lbs

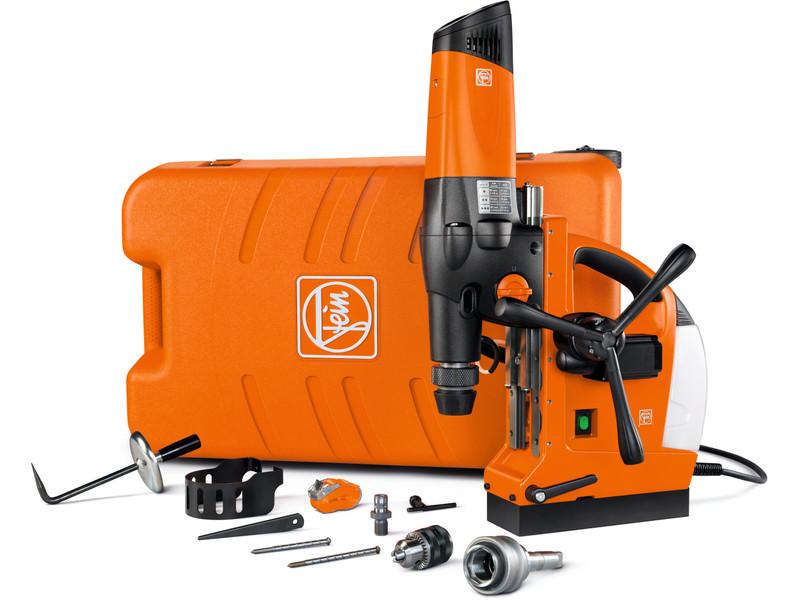

Price Includes:

1 case

1 1/2 in 3-jaw chuck

1 touch guard

1 coolant tank

1 safety strap

1 chip hook

1 drift

1 QuickIN adapter for M18 x 6 P 1.5

2 centering pins

Additional Information

Manufacturer: Fein Tools

For More Information on the Mag Drill unit up to 3-1/8 in, [Click Here] to Link to Manufacturer Web Site
