Has enough power for tough applications, such as core drilling up to 65 mm diameters or thread cuts up to M 20.
Flexible accessories use and accuracy with a combination of QuickIN and MT 3 adapters.
Adjustable double dovetail guide enables use of long drilling accessories without removing the machine from the workpiece.
Fine adjustment of drill spindle for easy alignment of machine without constantly removing and refitting the magnet.
Optimum power-to-weight ratio.
Mechanical two-speed gearbox.
2 electronic speed steps per gear.
Speed-controlled tacho electronics.
Powerful magnet.
Integrated cooling lubricant unit.
Electronic overload protection.
Self-start lock.
Superb service life.
Wide range of accessories.
available in 230 V only

Interested in this item or want more information?
M-F 7:00AM - 5:00PM
Phone:
Email:

Can't find what you want? Give us a call and we can help you find it.

Details

Core bit max. dia.: 2-9/16 in

Core drill, max. drilling depth: 2 in

Twist drill max. dia.: 7/8 in

Tapping: M 20 in

Max. countersinking dia.: 2 in

Reaming max. dia.: 7/8 in

Power consumption: 1,460 Watts

Power output: 650 Watts

1st gear - slow/fast: 125/250 rpm

2nd gear - slow/fast: 255/510 rpm

Core bit holder: QuickIN

Chuck: MT 3

Stroke: 5-11/16 in

Total stroke range: 13 in

Drill stand adjustment range: ± 1/4 in

Drill stand angular adjustment: ± 8°

Magnetic holding force: 2,700 lbs

Magnetic base sizes: 7-5/8 x 3-5/8 in

Cable with plug: 13 ft

Weight according to EPTA: 45.4 lbs

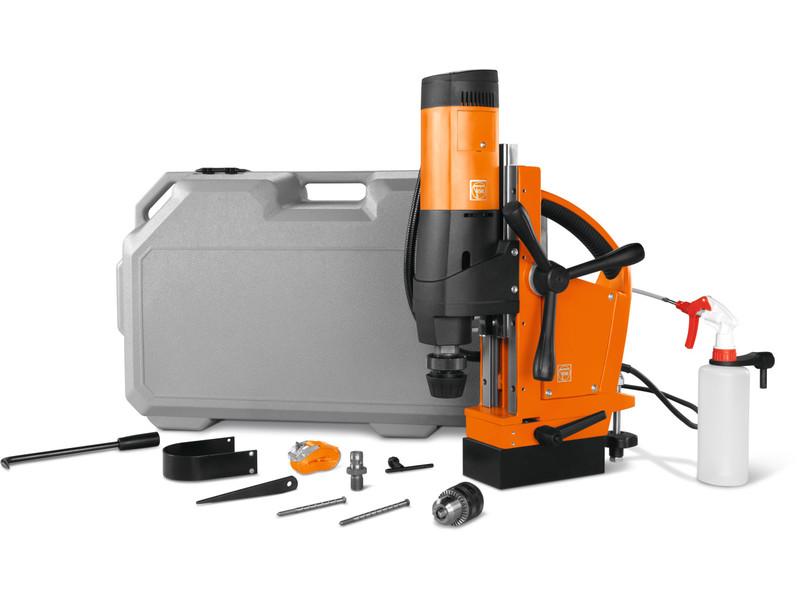

Price Includes:

1 case

1 coolant pump

1 safety strap

1 chip hook

1 1/2 in 3-jaw chuck

1 drift

1 touch guard

1 5/8 in 3-jaw chuck

2 QuickIN Weldon adapters

4 centering pins

Additional Information

Manufacturer: Fein Tools

For More Information on the Mag Drill unit up to 2-9/16 in, [Click Here] to Link to Manufacturer Web Site
